Modeling of Support, PU frame and End Scrape Mill Cutter for High Precision Machining of Support's Surfaces

Educational Institution:Kolomensk branch of Moscow State Open University
Project description: The model of a real product was created. Parametric modeling of all elements of the design was executed in the T-FLEX CAD. When designing the mill, the real process of developing tools of such class "from removable many-sided plates" was modeled.

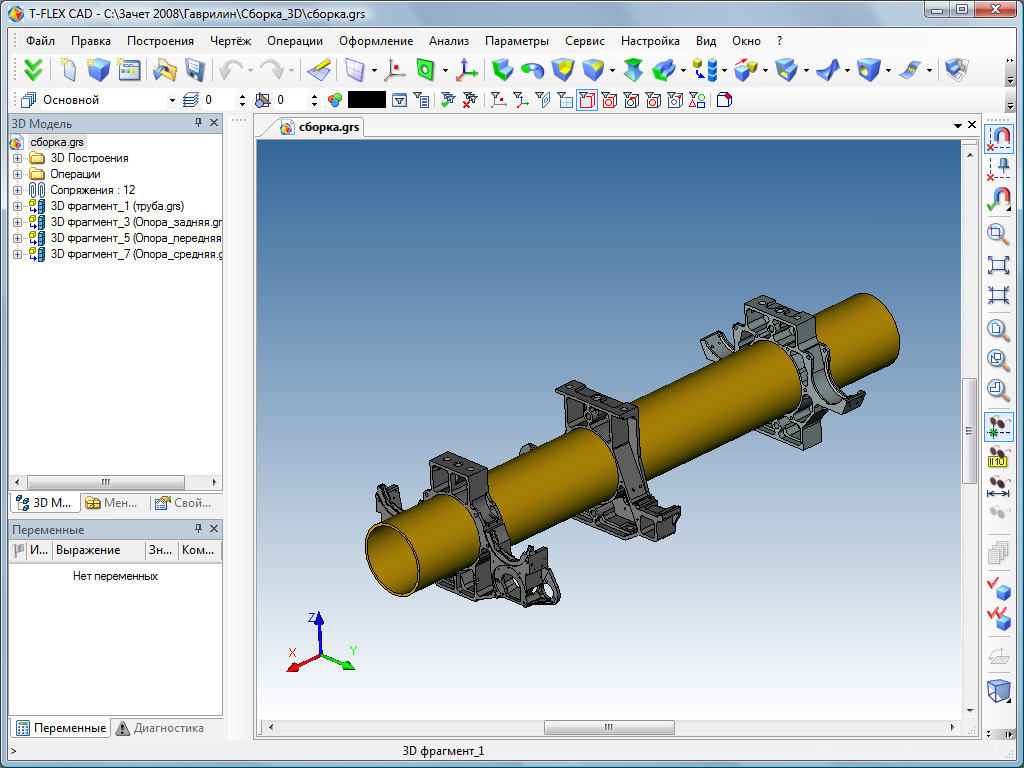

  •  Modeling of Support, PU frame and End Scrape Mill Cutter for High Precision Machining of Support's Surfaces

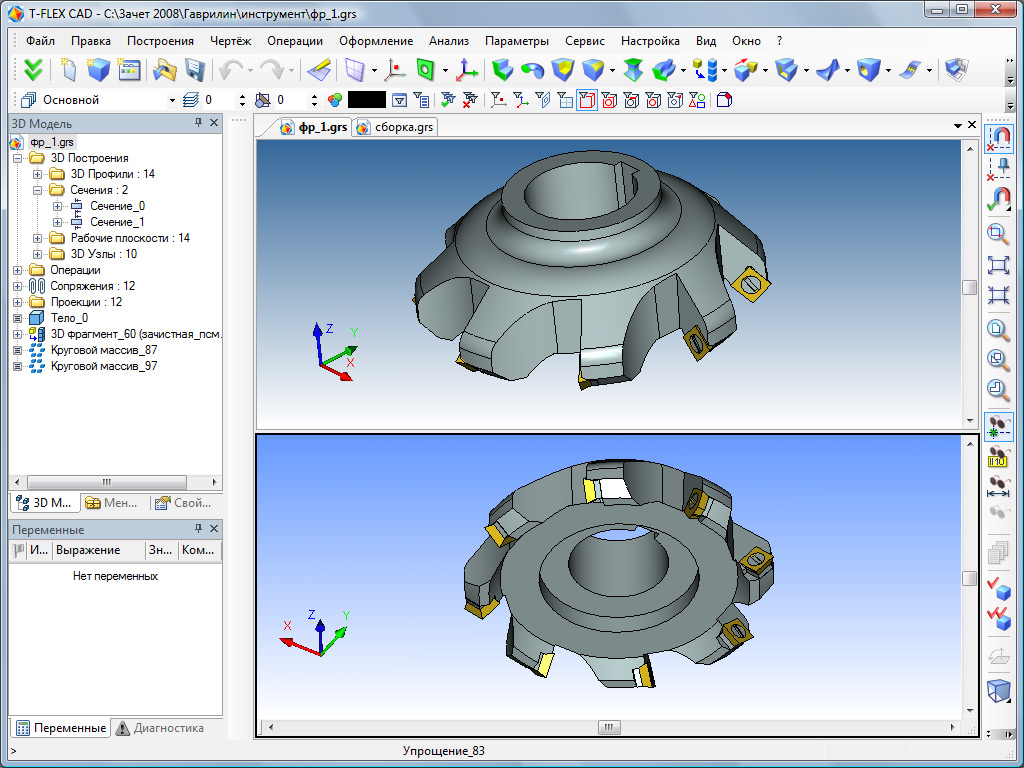

  •  Modeling of Support, PU frame and End Scrape Mill Cutter for High Precision Machining of Support's Surfaces
