Principles of 3D Design and Assembling of "Meat Grinder GOST 4025-78" Model

Educational Institution: Kolomensk State Pedagogical Institute
Project description: Methodical student tutorials describing the process of 3D modeling and assembling in the T-FLEX CAD system were presented at the competition. While studying the tutorial, the student learns the main operations of 3D modeling, operations of insertion and transformations of 3D fragments, and also the process of creating the mates.

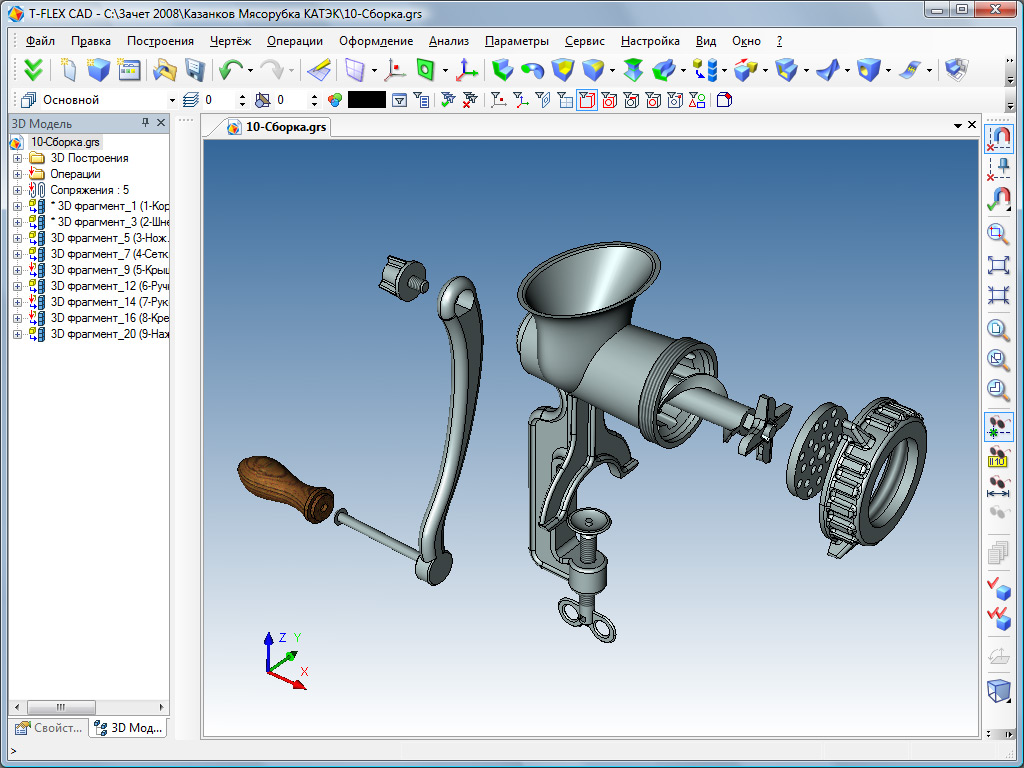

  • Meat Grinder GOST 4025-78

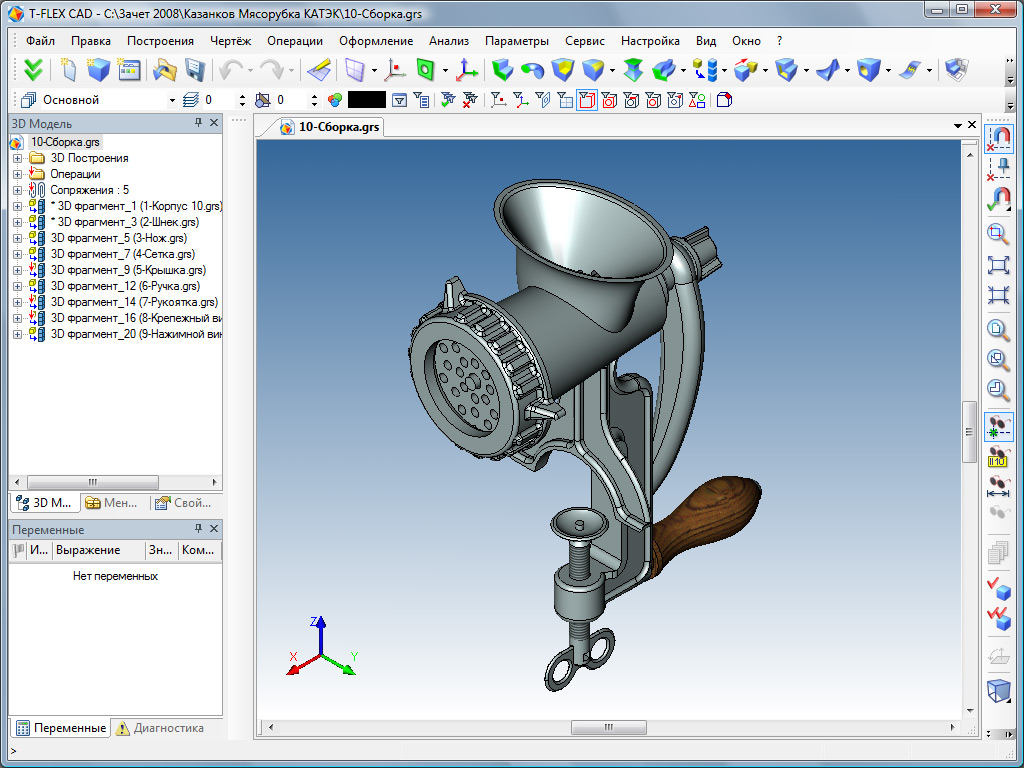

  • Meat Grinder GOST 4025-78
