Turning-revolver Machine Tool

Educational Institution: Cherkassy State Technological University, Ukraine

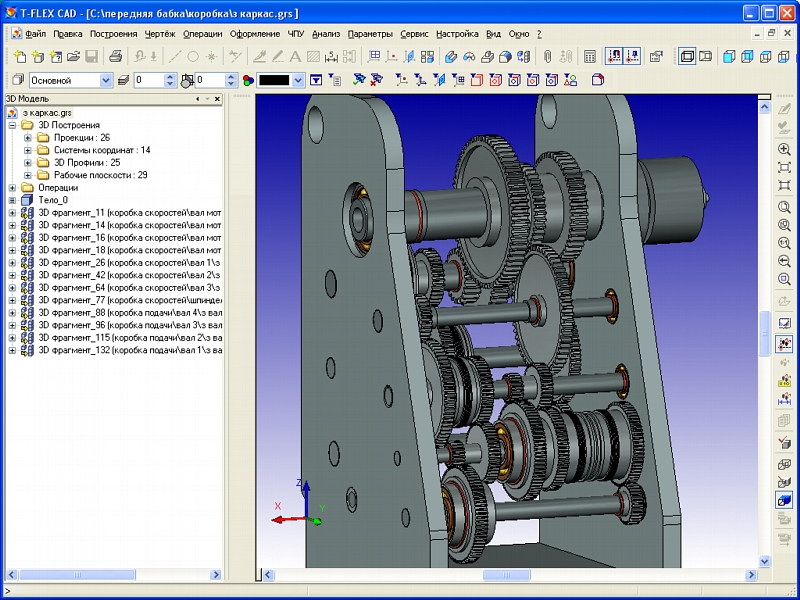

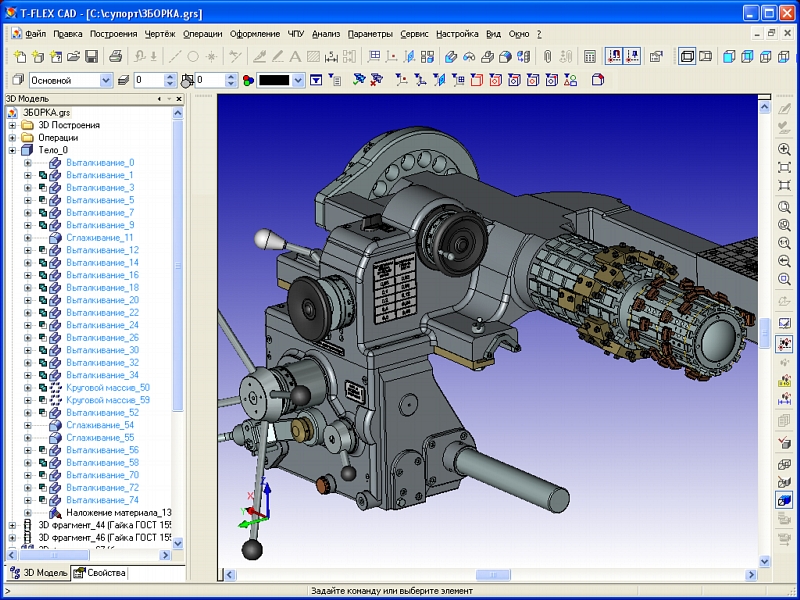

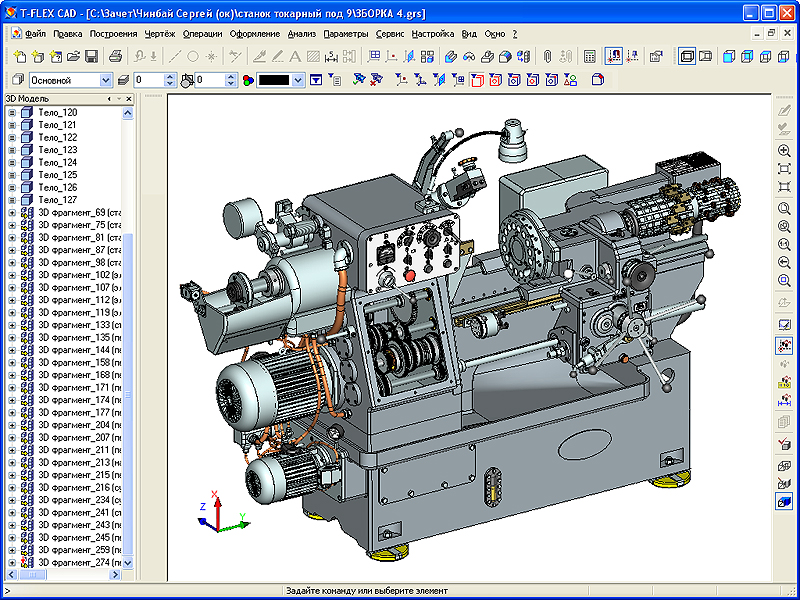

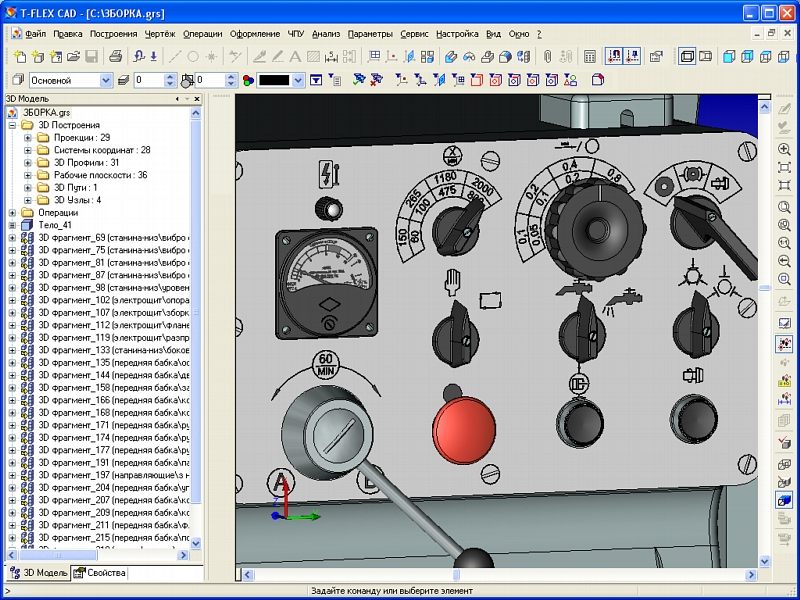

Project description: Initially, the model was divided into a number of sub-assemblies, which on a later stage were combined into a single assembly. The lack of the original drawings sometimes led to inconsistency in the dimensions of some contact surfaces, but this problem was easily resolved due to the parametric features of T-FLEX CAD.
