Self-propelled Hopper-Feeder with a Crusher

Company: JSC "Anzheromash", Anzhero-Sudzhensk
Industry: Heavy Machinery

Project Description

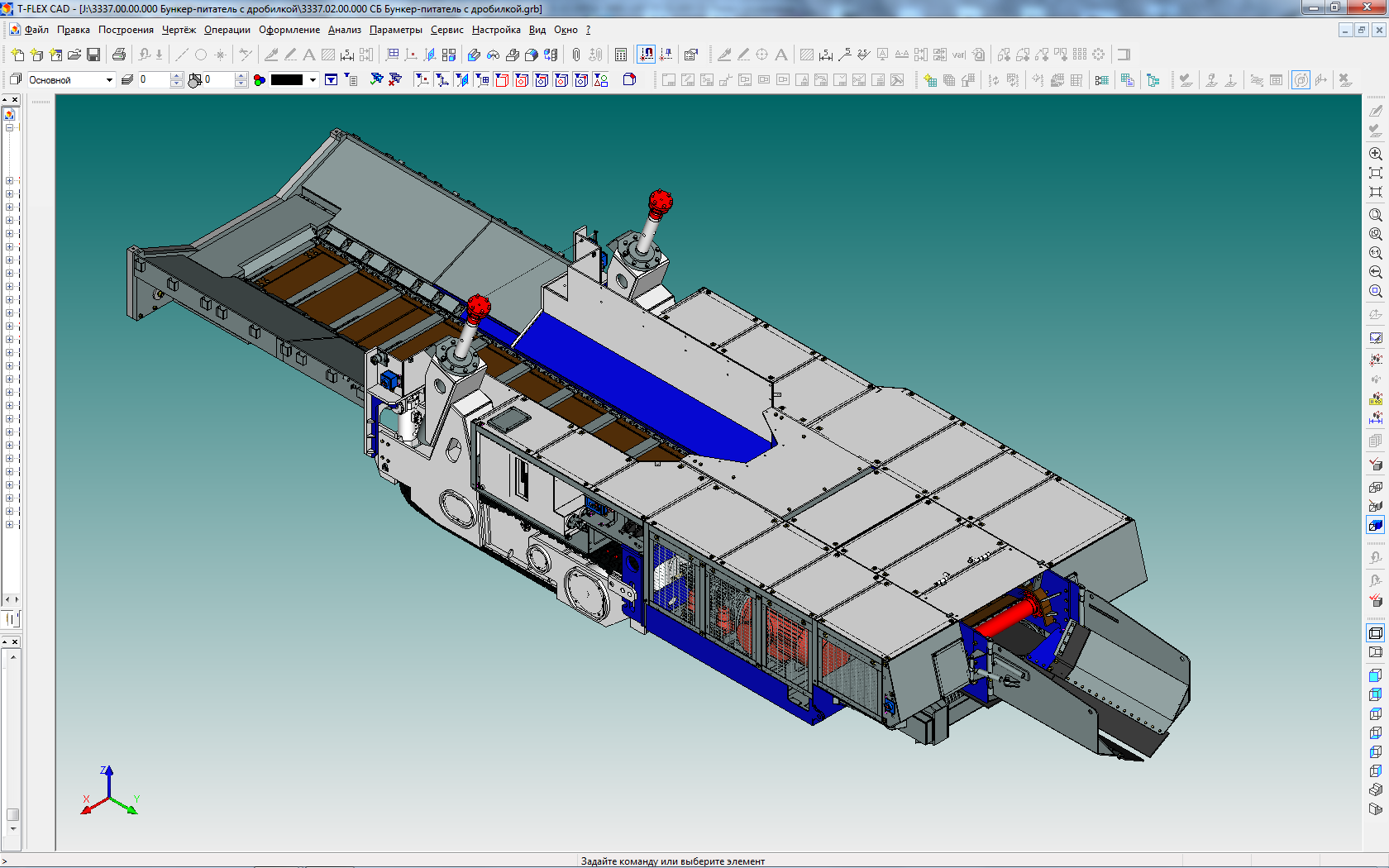

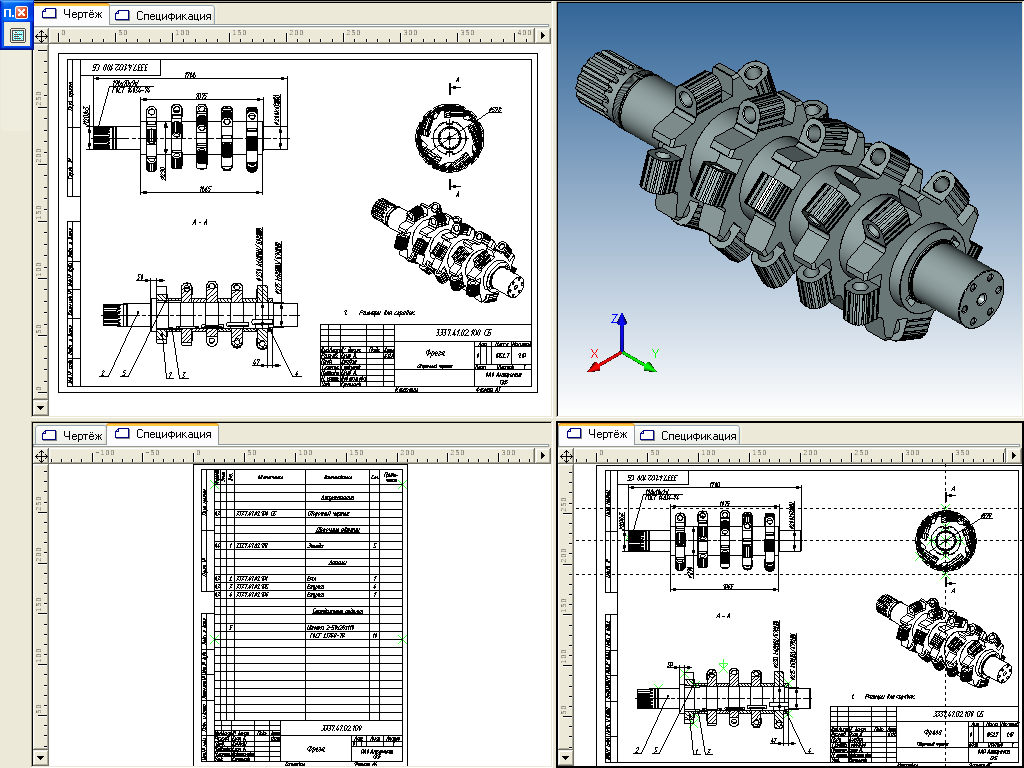

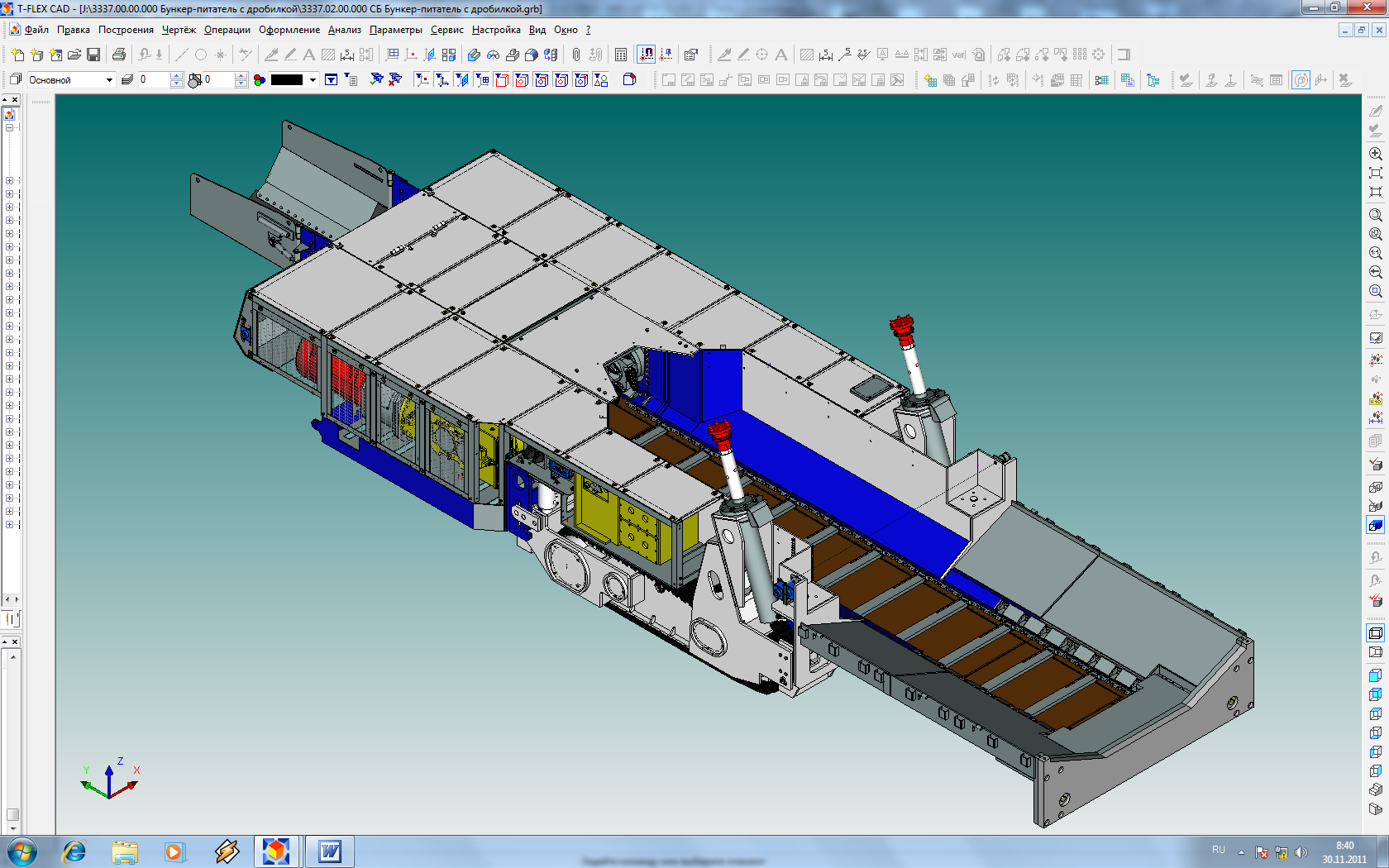

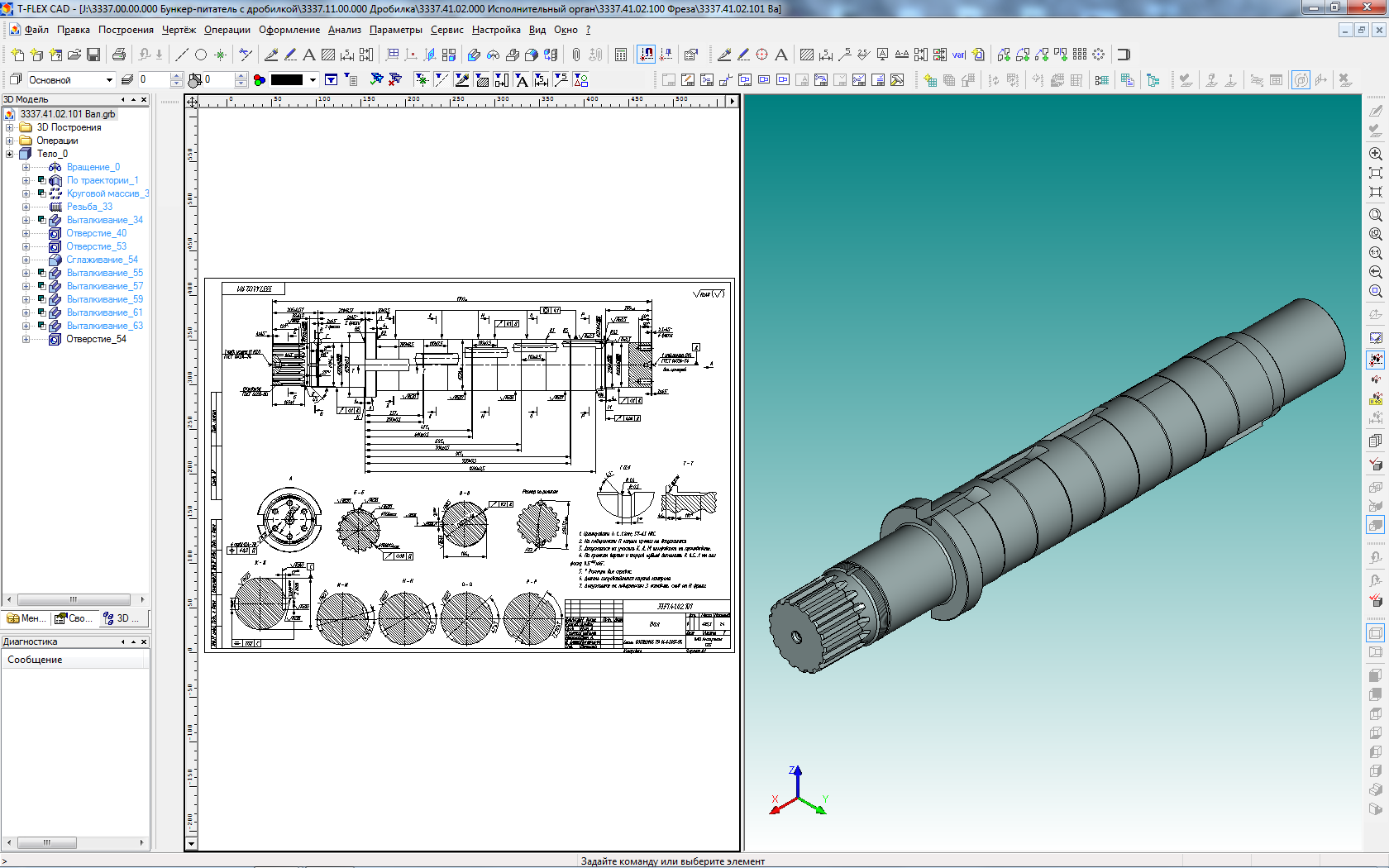

Hopper-Feeder with a Crusher was designed at requests of "Raspadskaya" coalmine. The set of documentation was received in paper form. 3D models with all the details were built in preparation for the production. Models hydraulic hoses and electrical cables were not designed. Model of hopper-feeder consists of 9145 bodies, 2526 of them are unique. Self-propelled hopper-feeder with a crusher is used for storage of the rock mass, optimization of flow and particle size distribution of the rock mass during the loading on the conveyor belt.

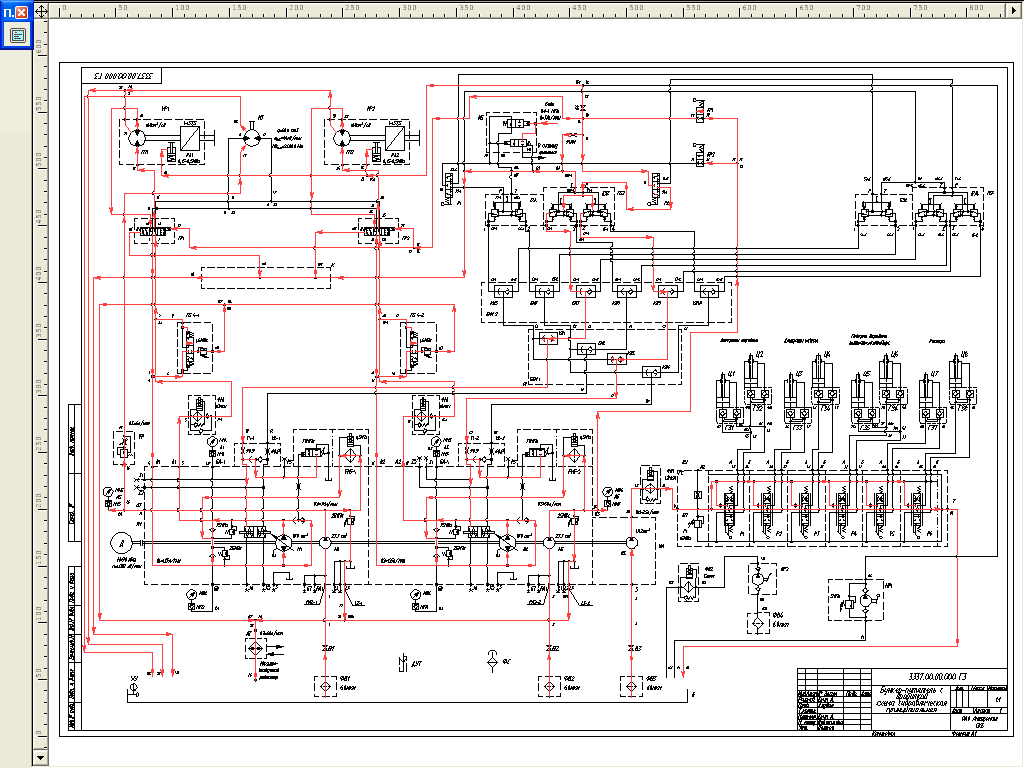

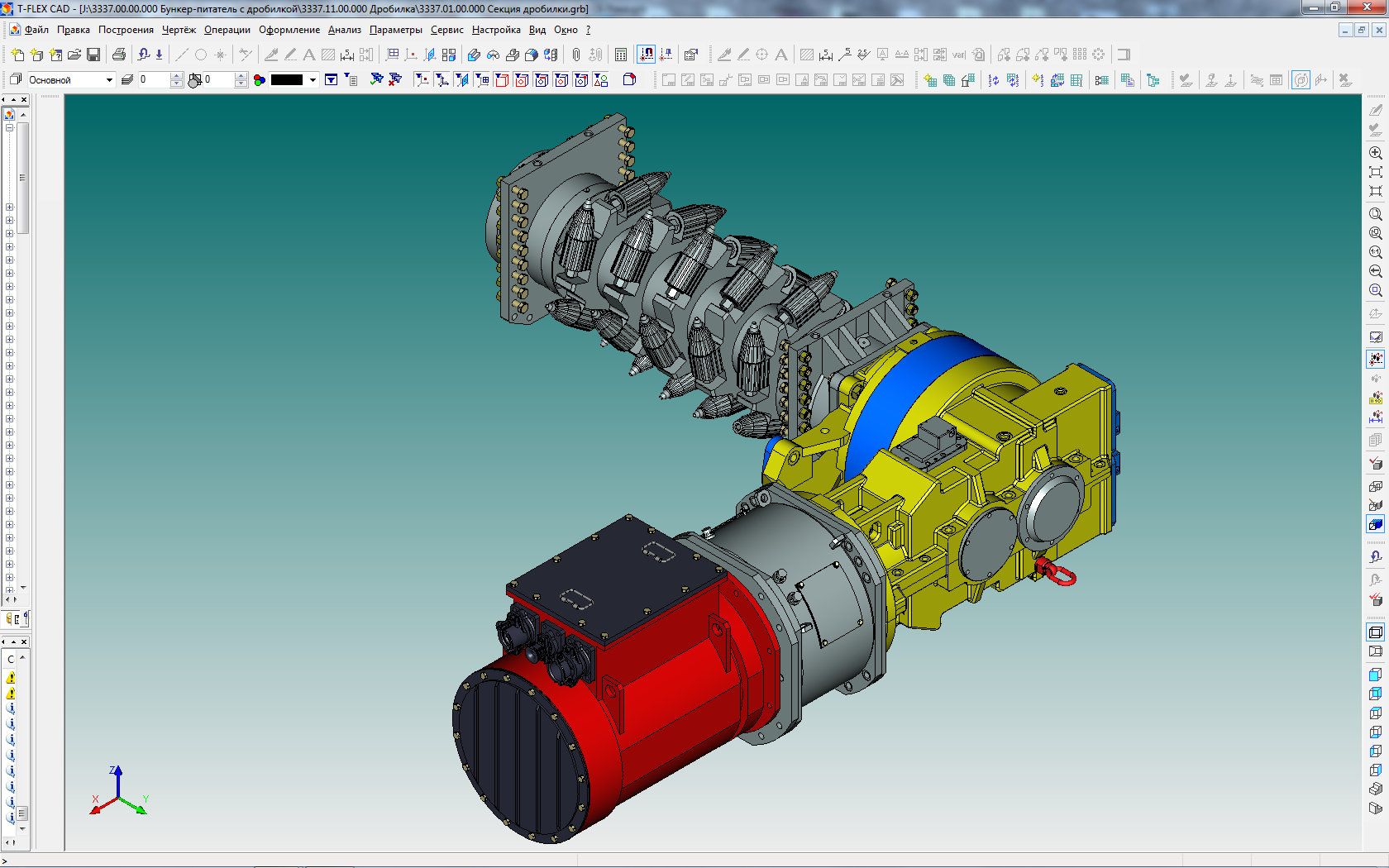

It is designed to work in coal and shale mines, including dangerous on gas and dust. It is equipped with a crawler chassis and scraper conveyor driven by hydraulic drive, the cutting crusher driven by motor and gear. To navigate through the mine the feed-hopper is equipped with a control system of clearance from 300 to 600 mm. To fix the feed-hopper in mine area the special system of thrust into the roof was designed. To adjust the position of axis of the conveyor belt tail roll there is hydraulic control system for positioning the tail roll of conveyor belt.
