Routing Connection Types > Save, Import, Export Types

The tree structure and description of types is contained in ConnectorType.xml file. To manage this file, use the following commands available in the File section of the menu of the routing connection types editor:

•Save (active, if any item in the tree has been changed): saves ConnectorType.xml file in “C:\Users\User_name\AppData\Local\ Top Systems\ T-FLEX CAD 3D…” folder.

•Import: replaces the contents of the current ConnectorType.xml file with the contents of the imported file. If ConnectorType.xml file has been modified before importing, system would prompt to save it under another name.

•Export: saves ConnectorType.xml file to the specified location. If desired, you can specify a different name for the file.

When importing tree of types there are two options:

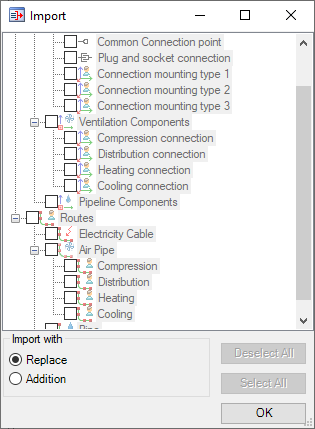

•Import with Replace: current list will be completely replaced by the list from external file.

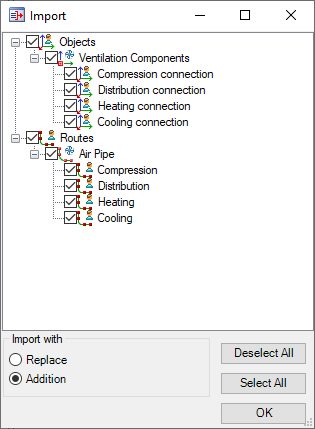

•Import with Addition: the user will be prompted to select the types that need to be put in the current list. The import list will be filtered not displaying the types that already exist in the current list.
