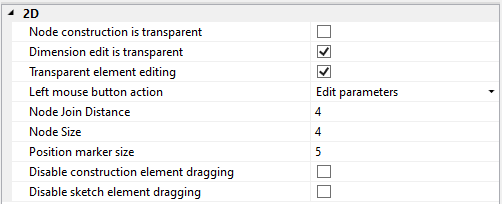

System Options > 2D

Node construction is transparent

If the checkbox is disabled, then calling the Node command from other drawing commands cancels the current command. If the checkbox is enabled, then in the same case the system remembers the state of the current command and returns to if after creating a node.



Dimension edit is transparent

This option allows editing dimension values by clicking the value without calling editing commands. The construction entities that are driven by the dimension are being identified and relocated (if possible) according to the new value. If Transparent element editing is enabled, then transparent editing of dimension values is available regardless of the state of Dimension edit is transparent option.



Transparent element editing

When this parameter is turned on, upon selection of 2D elements in the command waiting mode with the help of , the command of editing a selected element is automatically started. If this parameter is turned off, nothing is happening after choosing a 2D element, the system just waits for the user's commands. This parameter is turned on by default.



Left mouse button action

This parameter defines the action performed for drawing views on the left mouse button push while in commands. The action is selected from the pull-down list.

At your choice, pressing in different modes will either bring up a context menu or cancel the current command. For example, if the entry Menu in command… is selected, then the context menu on pressing the right button will be duplicating the automenu while in a command.



Node Join Distance

Sets the radius in pixels for locating nodes on the screen. The join distance radius is used when creating new nodes in the “free drawing” mode. If the cursor is within the join distance of some node then this node will be selected instead of creating a new node.



Node Size

Sets the size in pixels of a node on the screen.



Position marker size

Specifies the size of position marker. The position marker specifies position of the dimension and value on it upon editing.



Disable construction element dragging

Disables dragging with mouse for construction lines and 2D nodes.



Disable sketch elements dragging

Disables dragging with mouse for graphic lines.
