The parameters dialog
of a GD&T symbol can be invoked in one of the following ways:
•by double-clicking
the symbol in 2D or 3D view window or in
Model Elements window;
•from the contextual menu, invoked by clicking
the symbol in 2D or 3D view window or in Model Elements window;
•from the dynamic toolbar, displayed upon selecting the symbol in 2D or 3D view window;
•from the automenu of the
GD&T Formlimits,
Datum and
Edit GD&T Formlimits commands.
Regardless of the type of symbol, the dialog is called GD&T Formlimit Parameters and has following tabs:
•Common

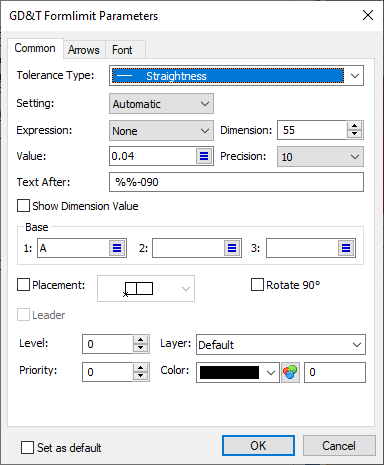

For feature control frame this tab contains same parameters as the Tolerance, Base and Placement tabs of the GD&T Formlimits command's parameters window.

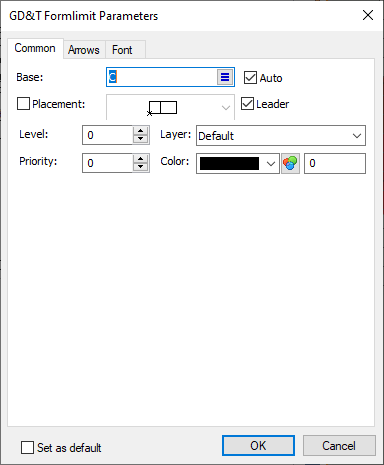

For datum feature symbol this tab contains same parameters as the Style tab of the Datum command's parameters window.
Moreover, in both cases the Common tab allows to customize Level, Priority, Layer and Color.
•Arrows
Contains same parameters as the Arrows, Arrow, Arrow Text and Symbol on Arrow tabs of the GD&T Formlimits, Datum and
Leader Note commands' parameters windows.
•Font
See the Font Parameters of Drawing Detailing Elements section.
