Document Parameters > Page > Grid

Предыдущая страницаВ началоСледующая страница

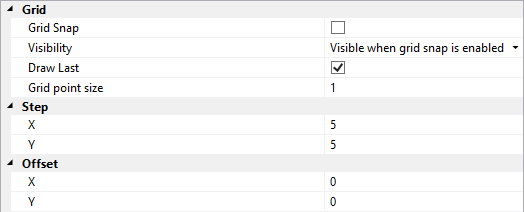

Settings39

Sets parameters and visibility of grid points.

Grid snap. Defines the mode of binding elements to the grid.

Visibility (Yes\No\Visible when grid snap is enabled). Sets the display mode of the grid points. The grid color is set in the system settings (the System Settings command).

Draw last. Defines the drawing order of grid points on the screen.

Grid point size. Determines the size of the point when displaying the grid in the drawing.

X step. Sets the grid step value along the X axis in the drawing.

Y step. Sets the grid step value along the Y axis in the drawing.

X offset. Sets the grid offset along the X axis in the drawing relative to the point (0,0).

Y Offset. Specifies the offset of the grid along the Y axis in the drawing relative to the point (0,0).
