Exclusions for Elements of 2D Projection

Following Breaks and Clipping Contour options are available in the contextual menu of active projection's elements:

•Don't draw

•Don't consider when calculating break lines

•Don't clip

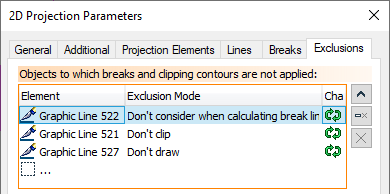

Elements affected by these options are added to the list in the Exclusions tab of projection's parameters:

You can can switch between options for a particular element in the list using the Change button.

Don't draw

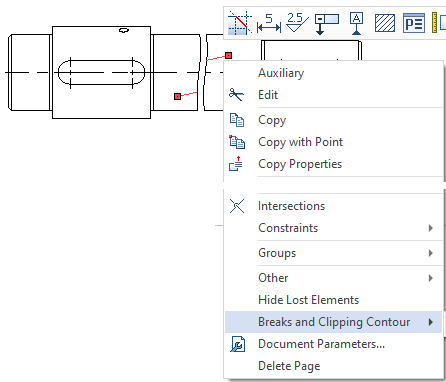

Click on active projection's element:

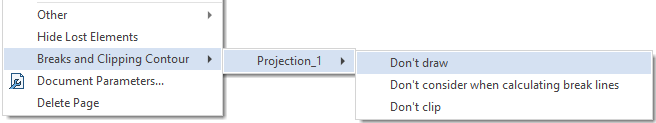

Select Breaks and Clipping Contour > Projection_# > Don't draw in the appeared contextual menu:

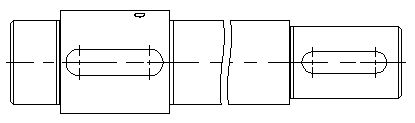

Selected element is not drawn anymore:

Don't consider when calculating break lines

This option is available both on 2D projections and on basic drawing views. However, on 2D projections it only affects lines representing contour of 3D model body. User-created graphic lines on 2D projections are not considered when calculating break lines anyway, no matter if this option is enabled or not.

Don't clip

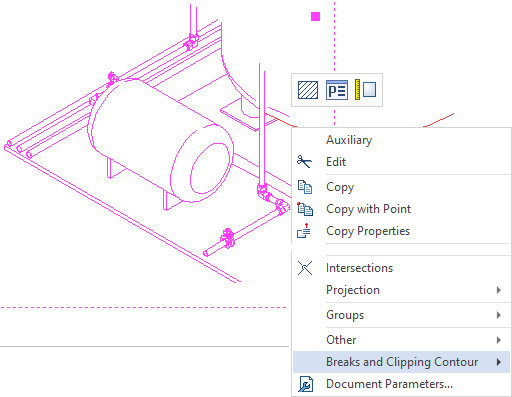

Click on active projection's element:

Select Breaks and Clipping Contour > Projection_# > Don't clip in the appeared contextual menu:

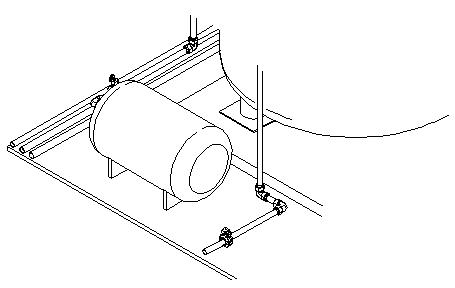

Selected element is not clipped anymore:
