Reactor-Mixer

Educational Institution: Siberian State Industrial University

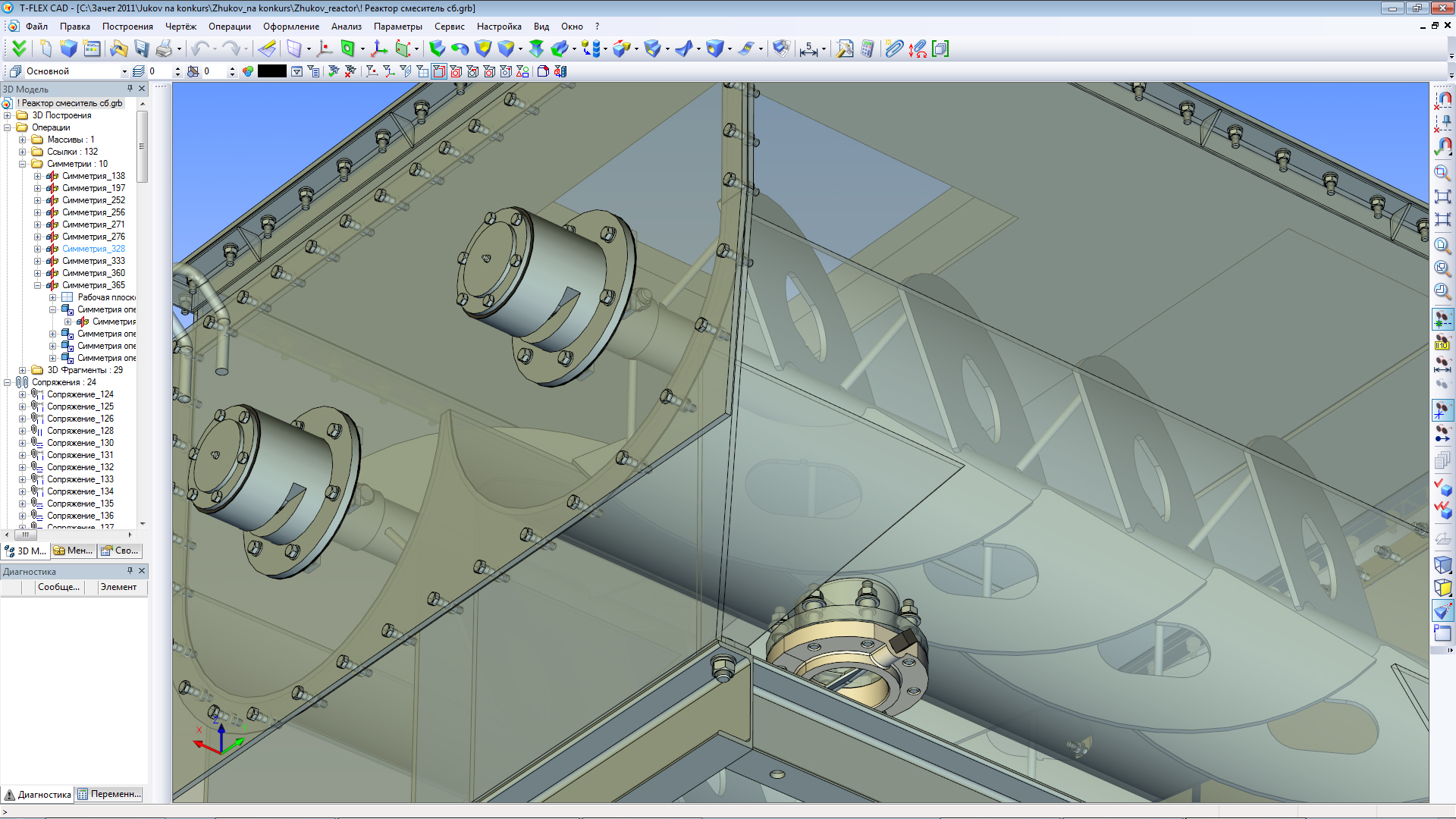

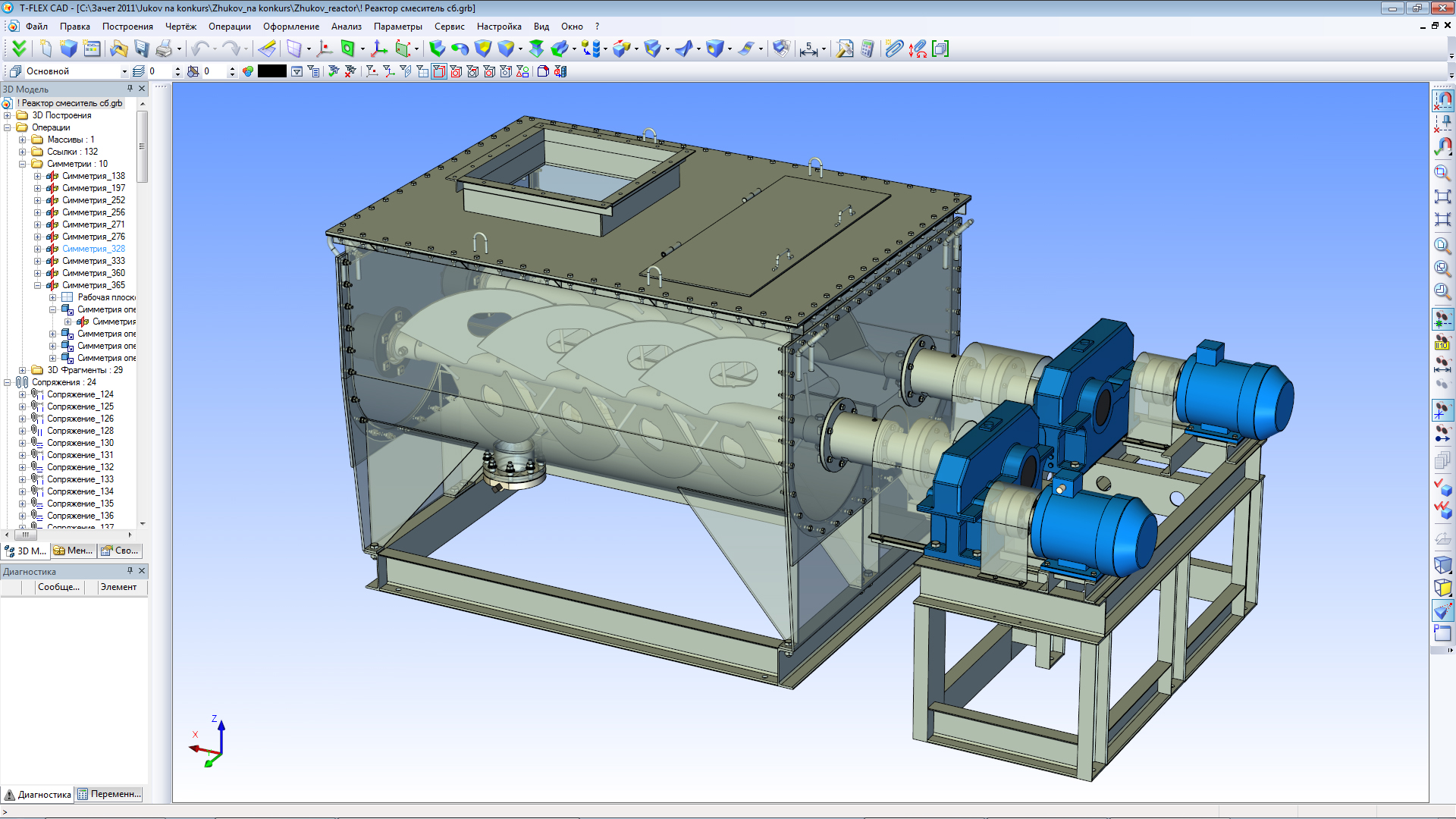

Project description: 3D model of reactor-mixer assembly is presented at competition. Model design is based on 2D drawings data. Each part has its own physical-mechanical properties that allowed getting mass-inertial properties of the whole reactor-mixer assembly. Usage of copies, linear and circular arrays helped to simplify assembling process. Reactor-mixer is intended for water-coal fuel preparation.

  • Reactor-Mixer
  • Reactor-Mixer
  • Reactor-Mixer
