Air Cooler

Company: LLC "Gribanovsky Machine-Building Plant"

Industry: Technological equipment for chemical, oil and gas refining

Product Description

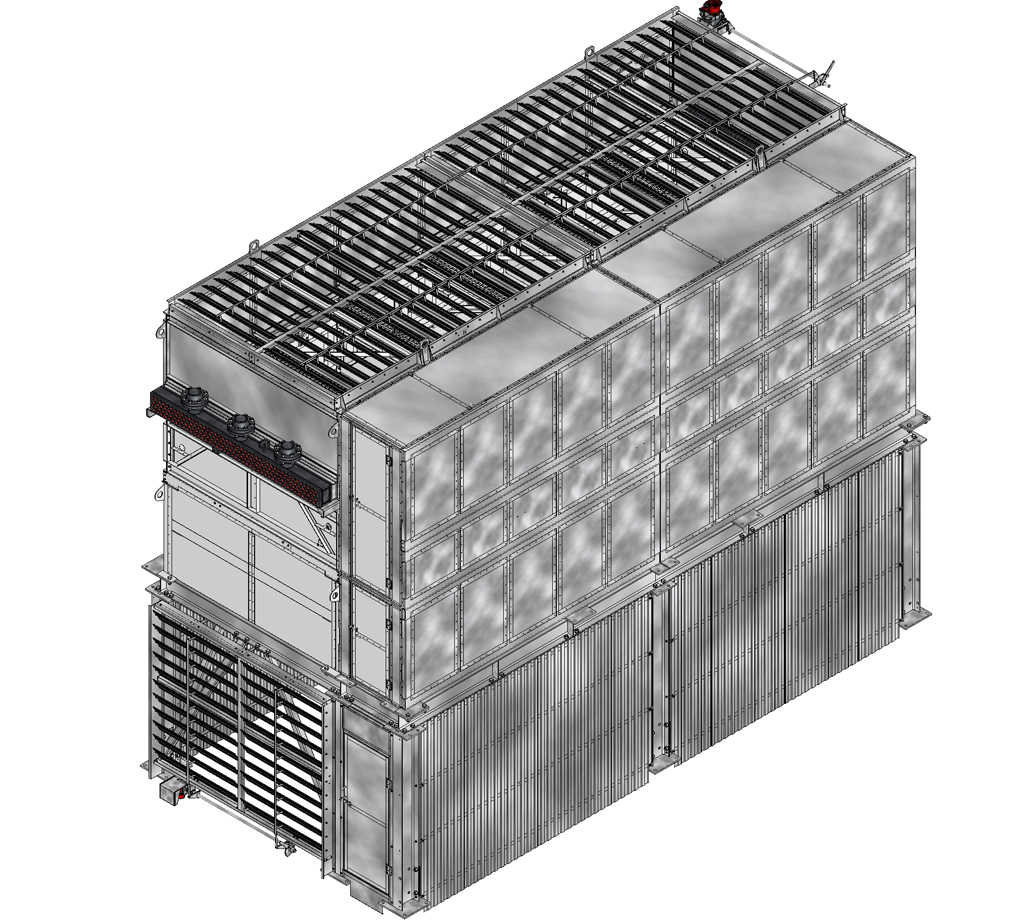

The product is designed for cooling and condensing vapors, gases and liquids in industrial processes of refining, petrochemical and related industries.

The project was carried out with the highest degree of detail, using parametric features. Calculation of the fan blades and the critical points of failure of the boundary layer was performed. General assembly contains over 12,000 fragments, many of which have complex geometry.

3D-assembly graphical representation contains about 1.500.000.000 polygons.

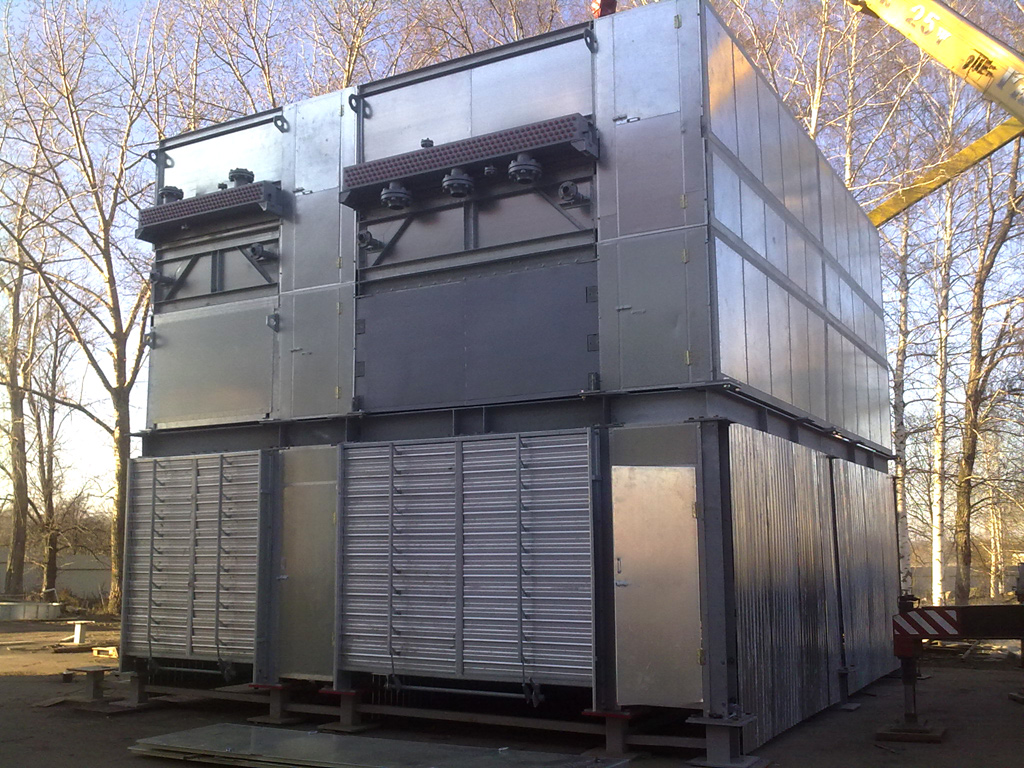

The product is manufactured and successfully operated.
