3D Printer

Project Description

The author designed and assembled a 3D printer in the T-FLEX CAD 16 Student Edition.

When designing, the following tasks were set:

- working field not less than 200x250x190 mm;

- a significant increase in the rigidity of supporting structures;

- maximum use of existing components (shafts and linear bearings, motors, electronics, extruder, heated table (for the first time));

- the printer must have a cover for printing with ABS plastic;

- it should be possible to switch to a three-color mixing extruder;

- the possibility of replacing the printing body with a PP laser, spindle, etc.

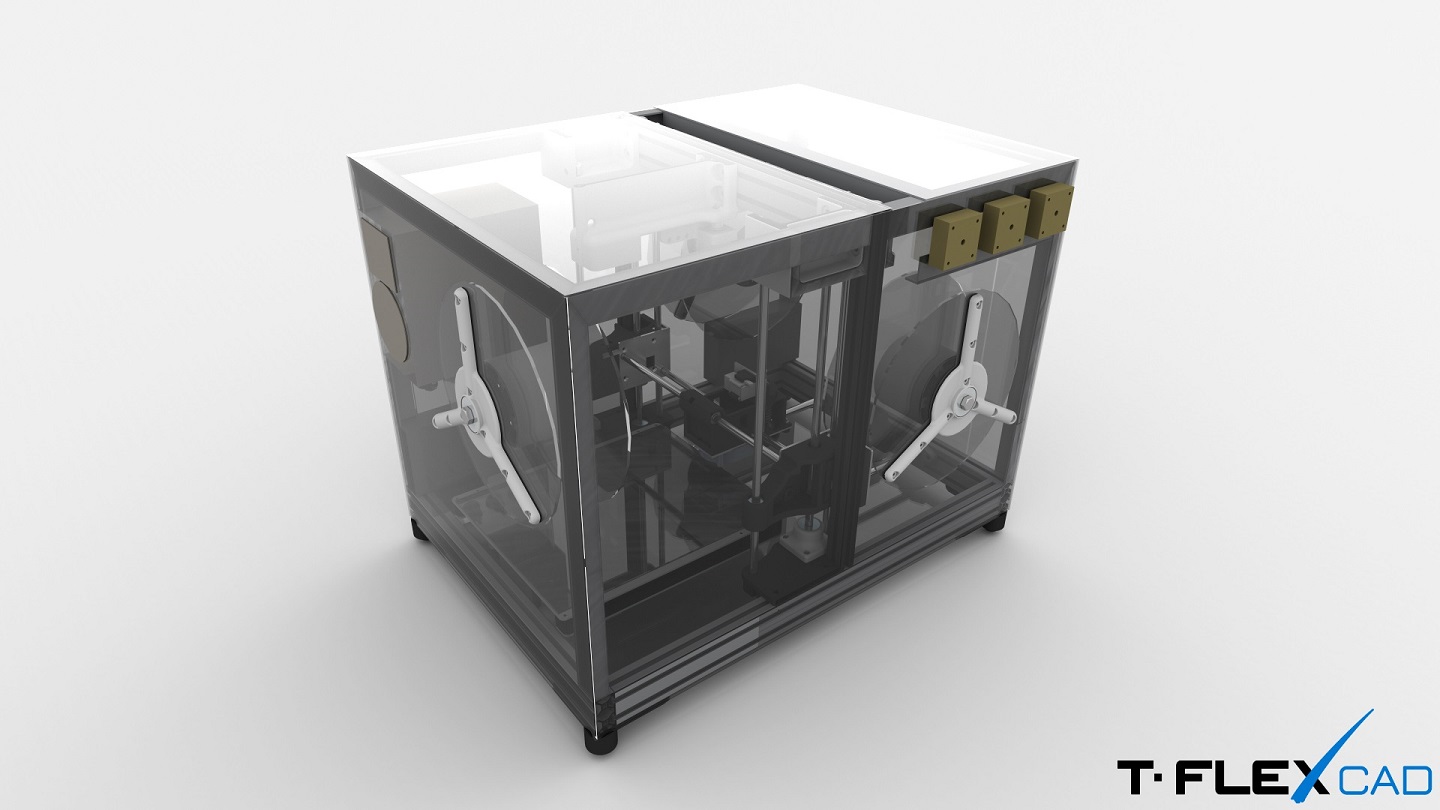

3D printer

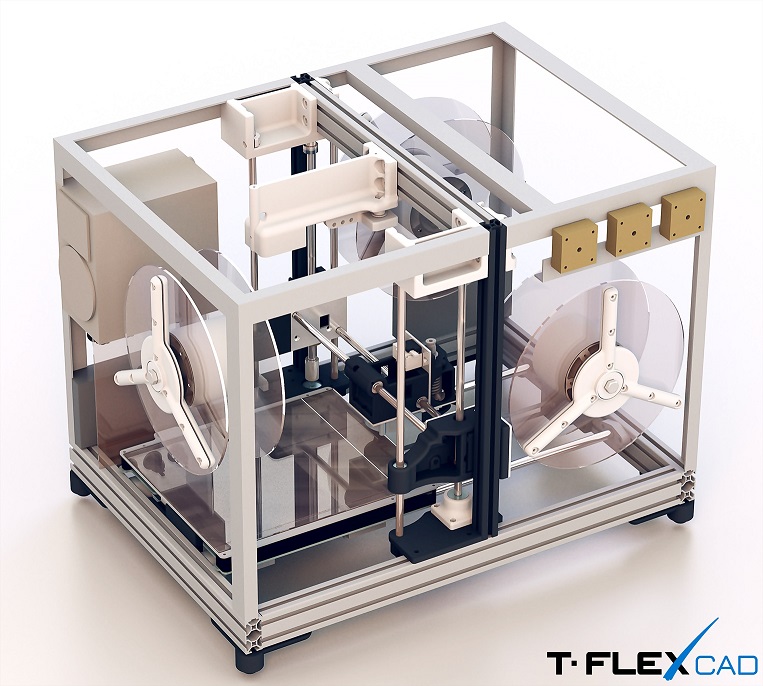

3D printer

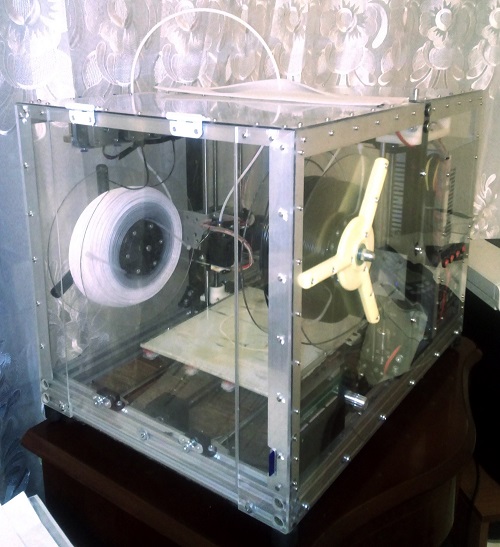

3D printer
