Refrigeration Evaporator

Project Description

This device was manufactured to replace a failed device at one of the enterprises of the Russian Federation.

Functional capabilities of T-FLEX CAD used in design:

- The simulation of this unit was carried out by the bottom-up method.

- During the development process, some types of parameterization were used (variable editor, databases, control dialogs).

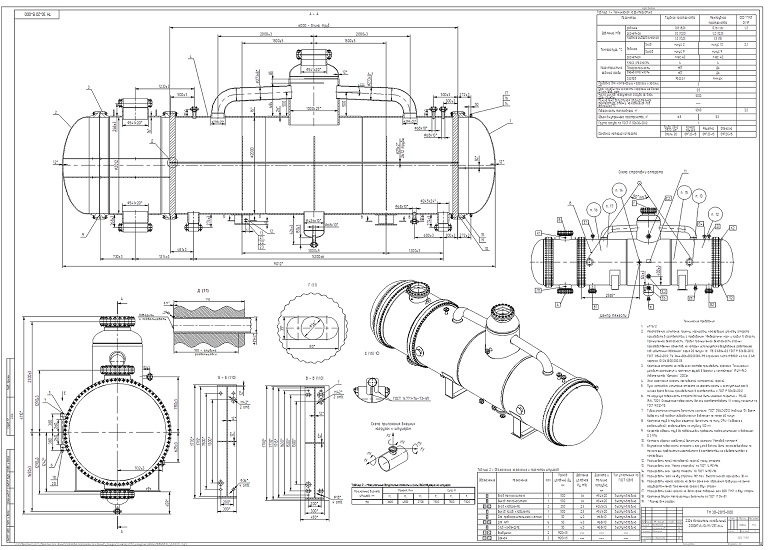

- This device has a multi-level assembly structure, a complete bill of material for all assembly units, parts and assemblies, drawings of all assembly units and parts, i.e. a complete set of design documentation for issuance to production.

- A materials library, standard products library from the T-FLEX CAD database was used.
