System for Electrical Discharge Machining of cells in aircraft engine parts

Company: UEC-Ufa Engine Industrial Association PJSC

Industry: Heavy machinery

Project Description

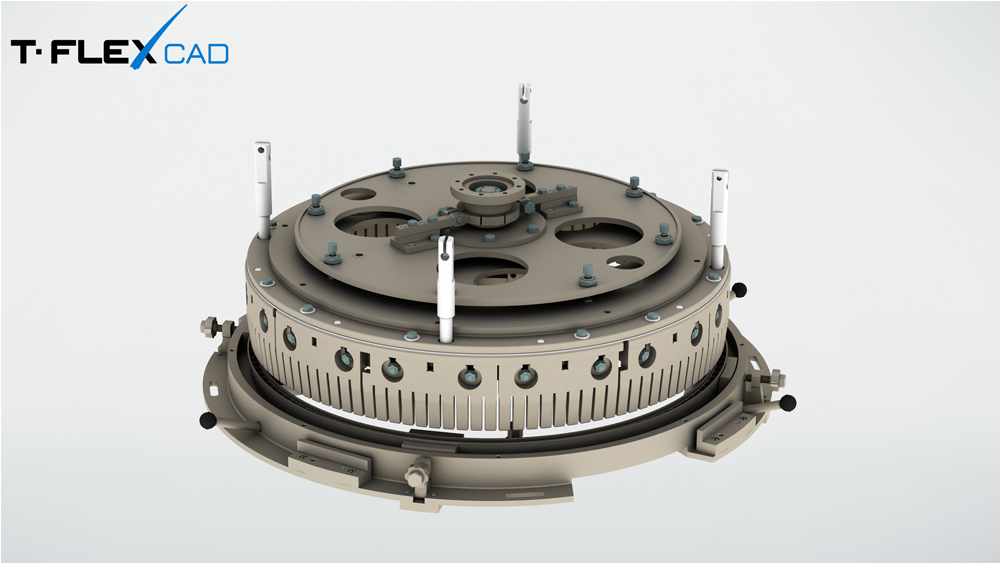

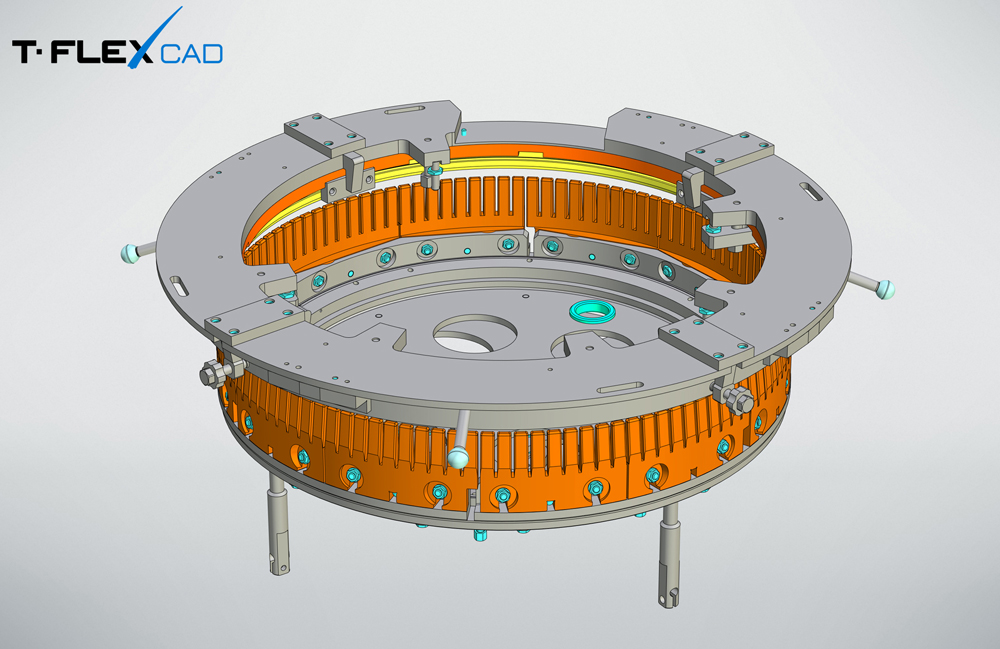

The model consists of an electrode, an electrode holder and a processed part holder. The electrode is used for melting cells on a part which is submerged into special electrolyte. The system is already manufactured, entry into service is planned soon.

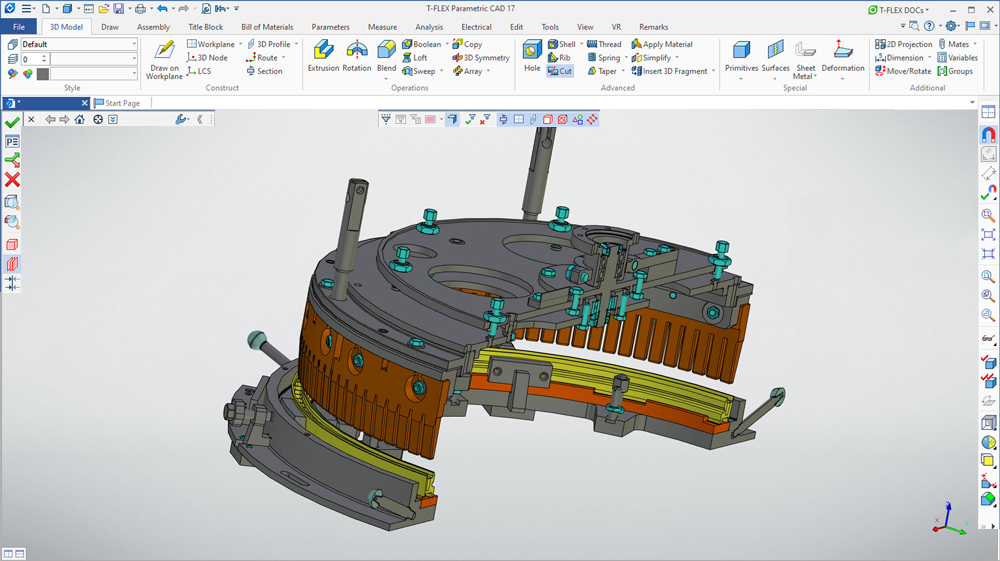

It is designed using T-FLEX CAD 16. The company uses its own standard parts libraries, created in accordance with latest standards. The assembly is designed using the bottom-up method. Each component is considered a separate equipment and has a full set of drawings and BoMs.

System for Electrical Discharge Machining

System for Electrical Discharge Machining

System for Electrical Discharge Machining
