Welding Machine
Company: NZRMK
Industry: Heavy machinery
Project Description

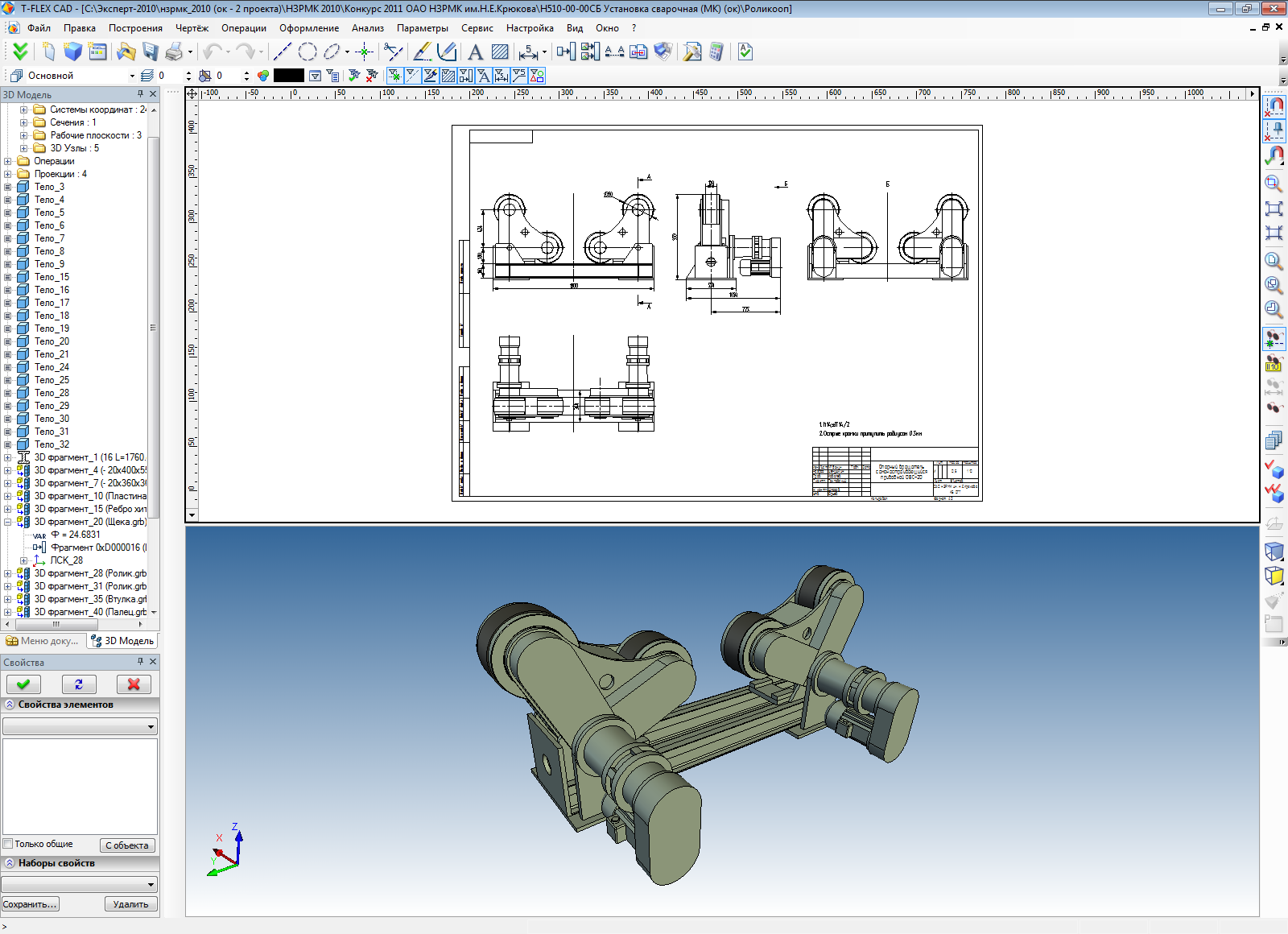

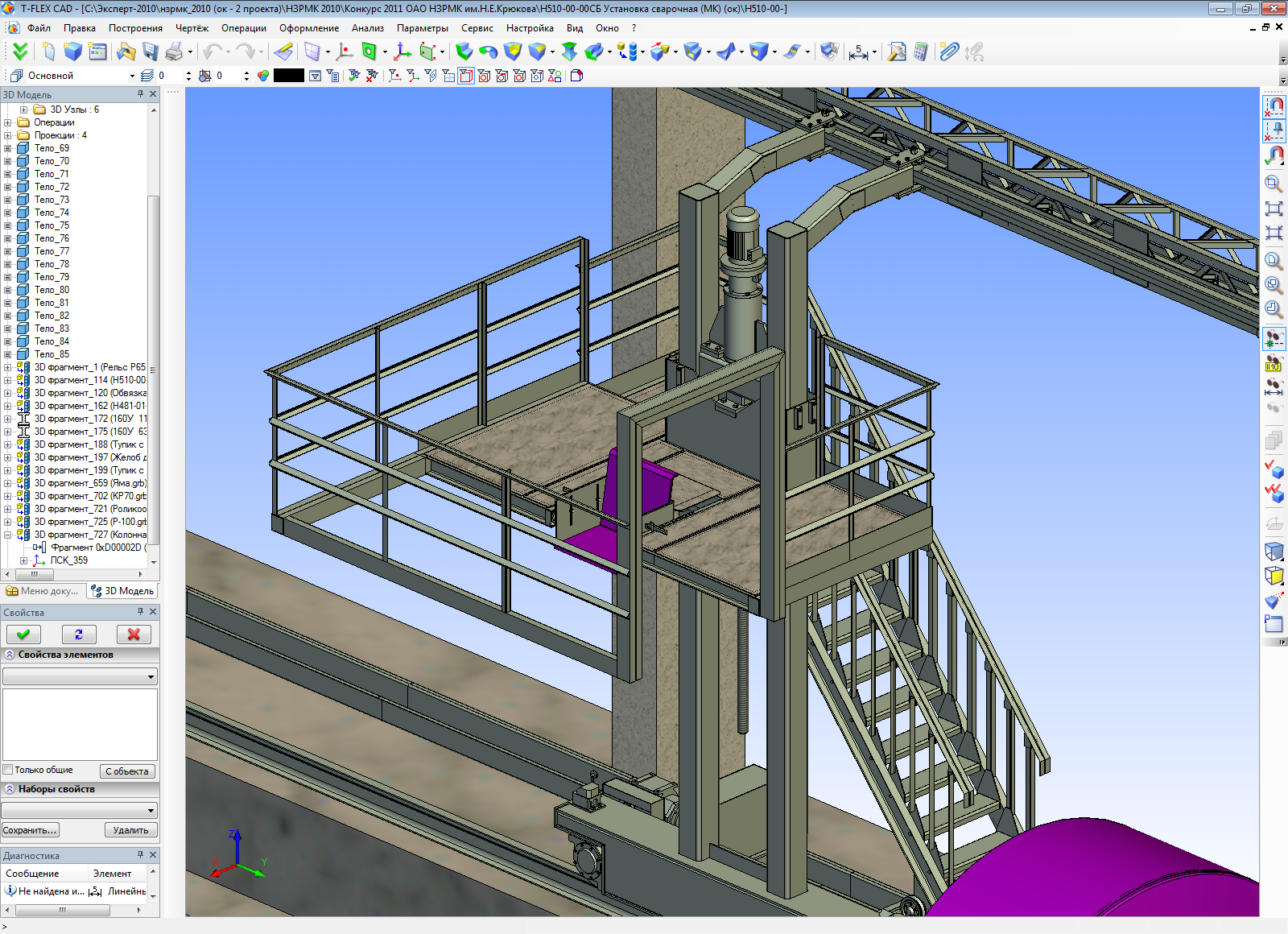

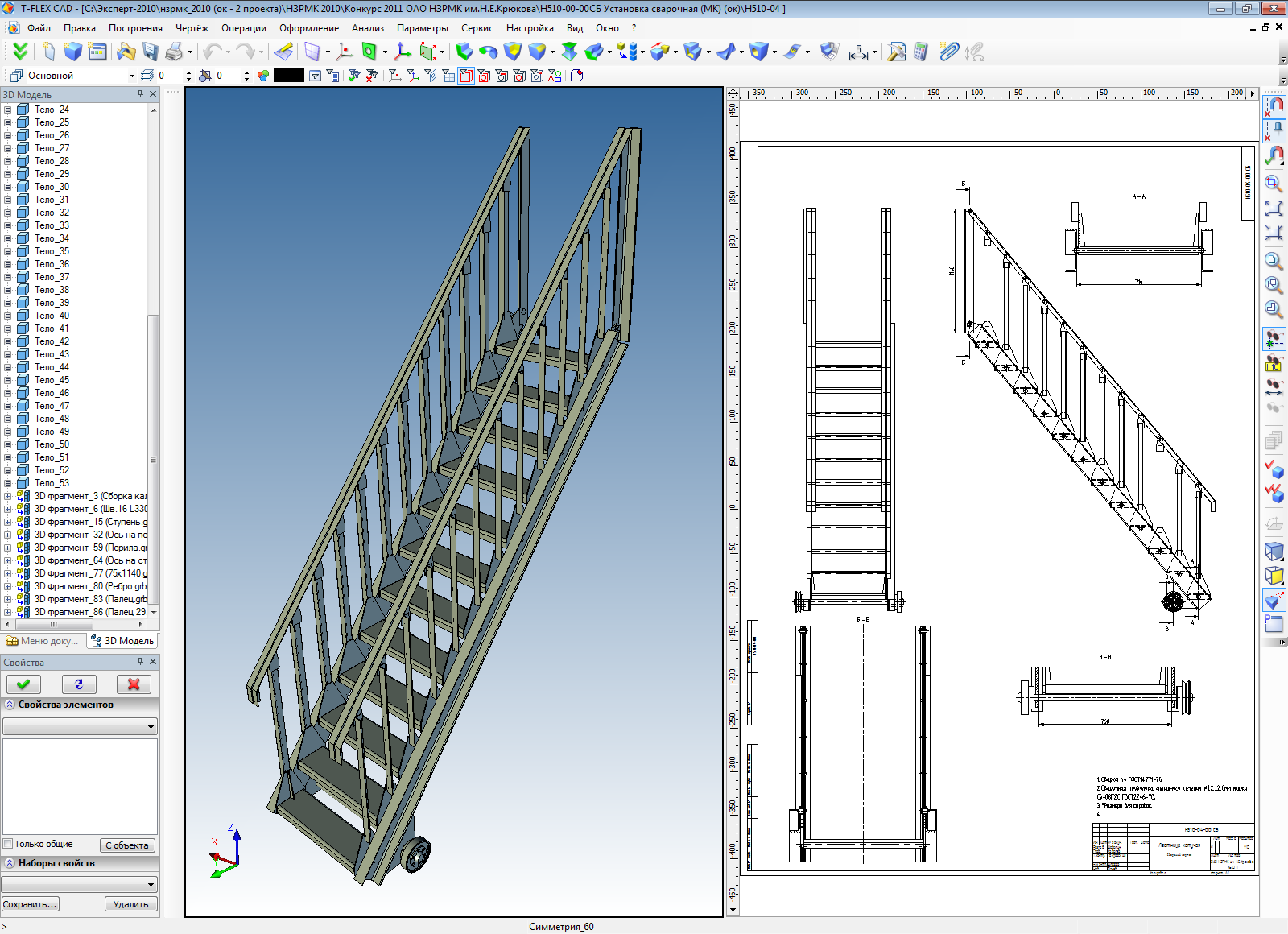

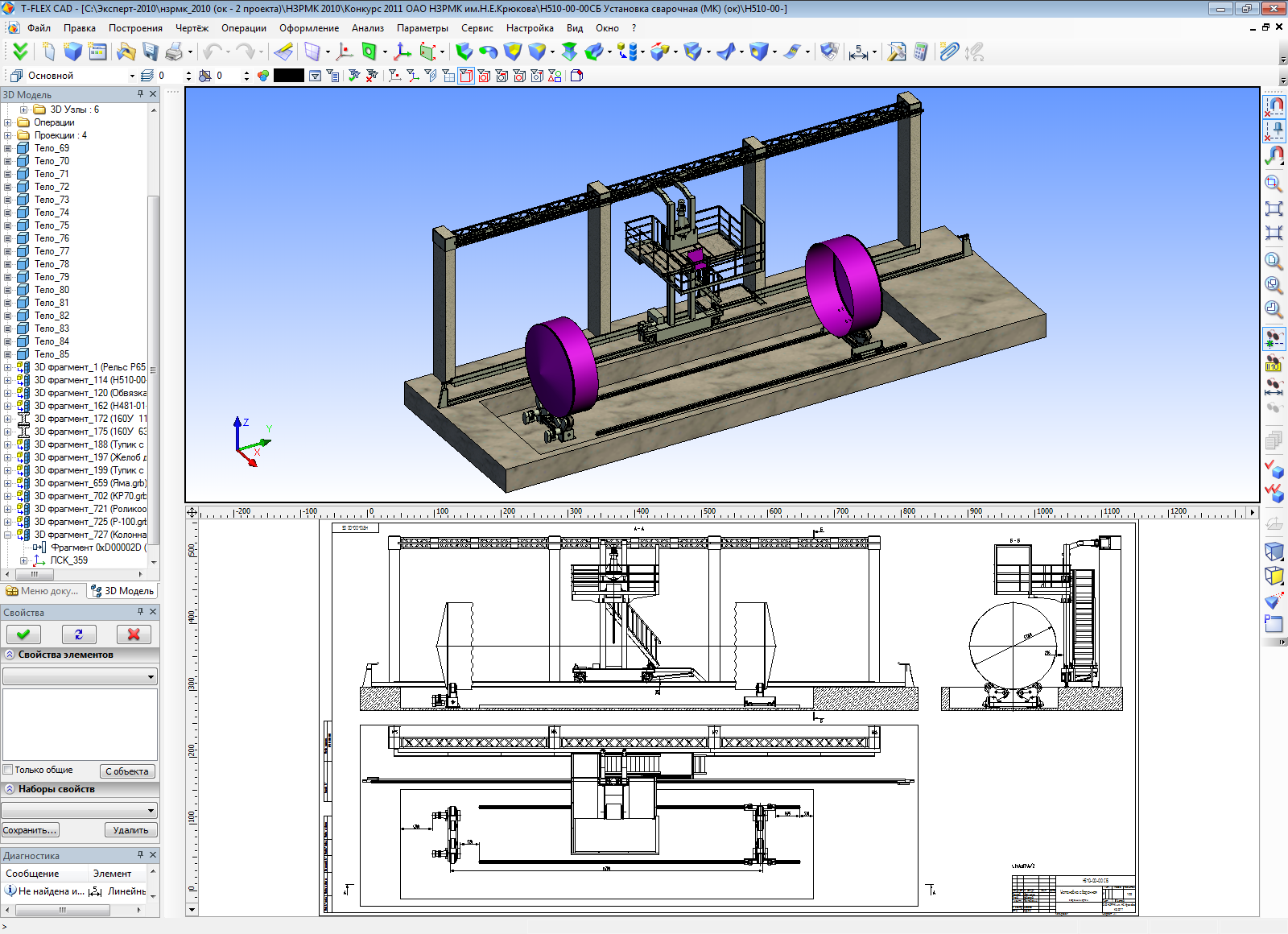

Welding machine was designed for welding P10 ... P100 tanks, pipes and flues. Structurally, the machine consists of the following elements: the bicycle drive truck with the possibility of sliding the welders working platform by height; the drive roller table created on the basis of two self-tuning rotators. The project contains 3D models, assembly and detailed drawings, as well as automatically generated BOM.
![Mold](/img/ccimages/Welding Machine/im1.png)
![Mold](/img/ccimages/Welding Machine/im2.png)
![Mold](/img/ccimages/Welding Machine/im3.png)
![Mold](/img/ccimages/Welding Machine/im4.png)
